Preinstalled Systems

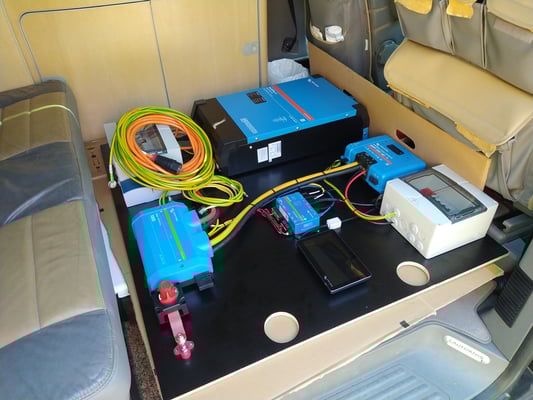

Smaller Systems can be installed in boxes or on a wooden board.

You can easily hang this system on a wall, connect your Grid or Generator, your Solar and the batteries and you are ready to go.

  • 13kWh LiFePO4 Battery (2 x 6.5kWh)
  • 5kVA Victron Energy MultiPlus-II Inverter for the OFF-GRID Island system
  • 3.3kWp Solar Panels (8 x 410Wp in 4S2P)
  • Input for Generator

The system will be extenden with a second 250/60 MPPT and more solar panels along the way.
A second MultiPlus-II 5kVA Inverter/Charger will be added to the system as well als a further 14.3kWh battery pack.
Those system extensions can be easily performed at a later stage.
This system is located on the Greek island of Crete.
Temporarily it is installed in a shipping container and has a airconditioner to keep the room below 25°C in this hot climate.
