Installation & System planning

If you are searching for a customized Solar system with high quality components, you are right at this page. You need a plan, circuit diagram or a entire solar and battery installation? Have a look at some examples below.

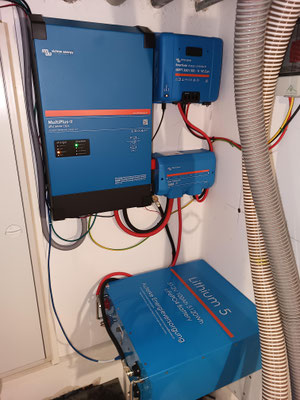

Residential Backup System 10kWp 14.3kWh

  • 14.3kWh LiFePO4 Battery 51.2V 280Ah
  • 5kVA Victron Energy MultiPlus-II Inverter for loadshedding / power outages / blackouts

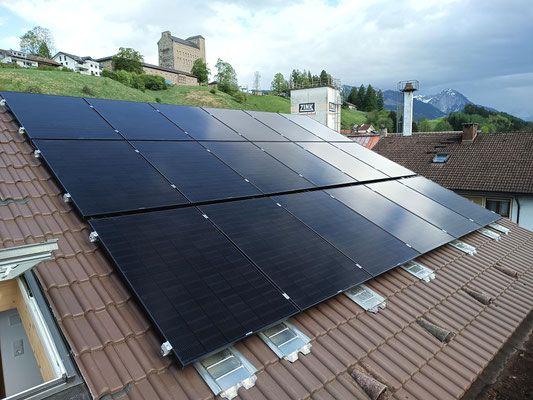

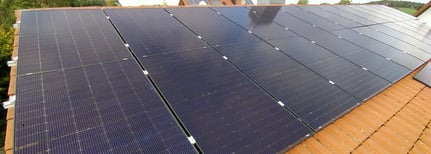

  • 10kWp Solar Panels on the roof
    • 13 x 385Wp Panels are connected to the Victron SmartSolar MPPT 450/100 solar charge controller

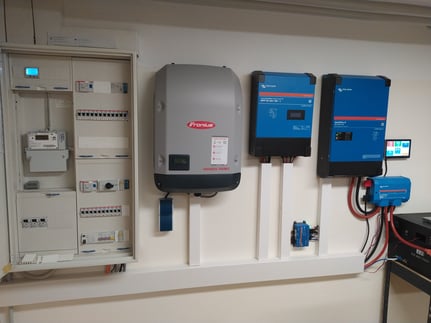

    • 13 x 385Wp Panels are connected to the Fronius Primo 4.6-1 AC-PV-Inverter
  • 22kW Victron Energy EV Charging Station

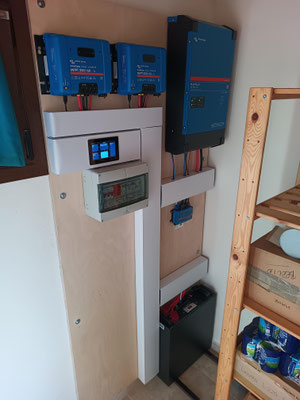

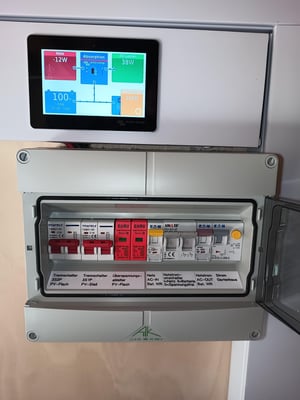

Apartment building

This Apartment building hosts 6 partys. Together, they decided to be selfsufficient and have a net-zero electricity bill in future. We could reach their goles by implementing this system:

  • 14.3kWh LiFePO4 Battery
  • 14.7kWp Solar distributed over the Victron SmartSolar 450/200 MPPT charge controller and two further indipendent microinverters (total: 36 x 410Wp Solar panels)

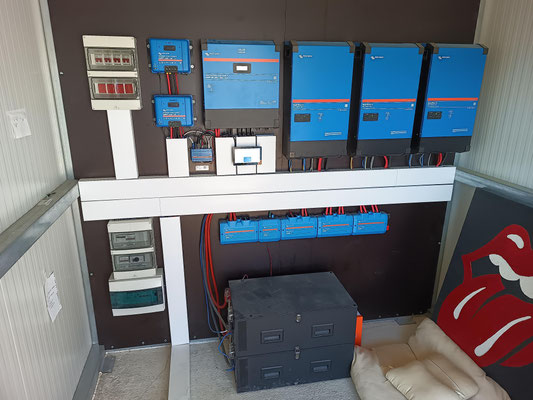

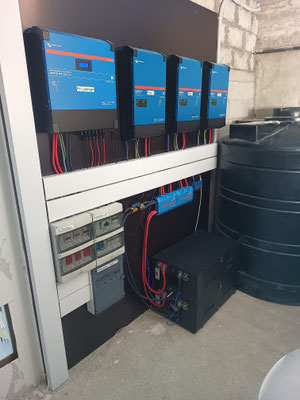

  • 3-Phase System with MultiPlus-II 5kVA Inverter/Chargers for a total of 15kVA

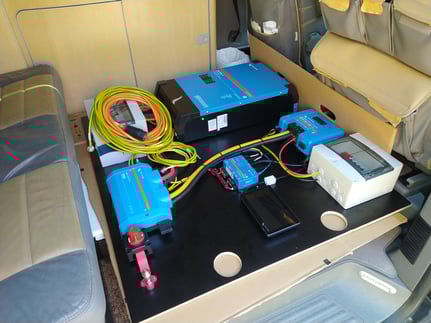

Preinstalled Systems

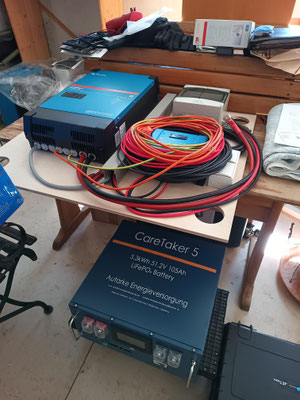

Smaller Systems can be installed in boxes or on a wooden board.

You can easily hang this system on a wall, connect your Grid or Generator, your Solar and the batteries and you are ready to go.

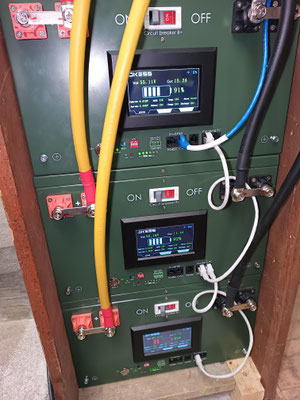

  • 13kWh LiFePO4 Battery (2 x 6.5kWh)
  • 5kVA Victron Energy MultiPlus-II Inverter for the OFF-GRID Island system
  • 3.3kWp Solar Panels (8 x 410Wp in 4S2P)
  • Input for Generator
