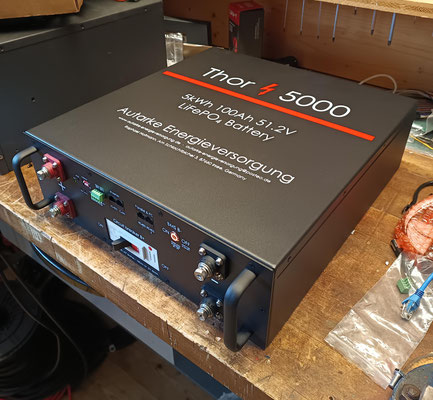

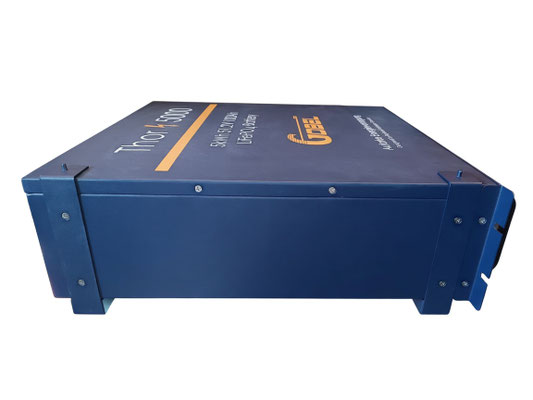

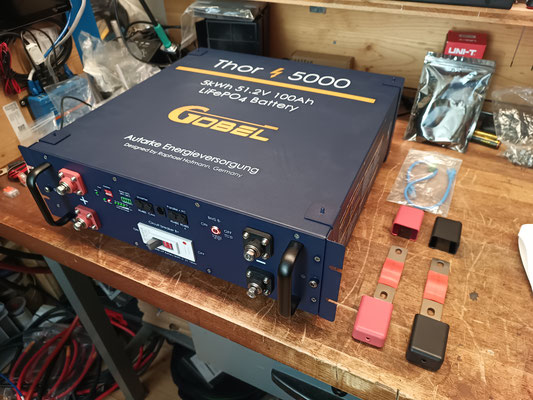

Thor 5000 LFP Battery

5.1kWh 51.2V 100Ah Lithium Iron Phosphate Battery
Only highest quality components where chosen for a versatile, reliable, safe and long lasting Battery!
Ordering directly form the Battery factories, we can offer a very good price, that even beats some of the big players in the industry. The design can be customized to your needs.

For years, I tested several Battery manufacturers and Battery Management Systems...nothing was satisfying my needs...Now we have the JK-Inverter-BMS with active balancing and Victron compatable CAN-communication...so I designed my own Battery pack, that suits a lot of different applications and reduces cost of cabling, external busbars and fuses.

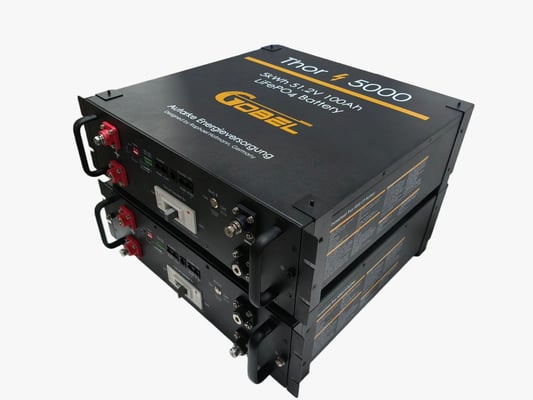

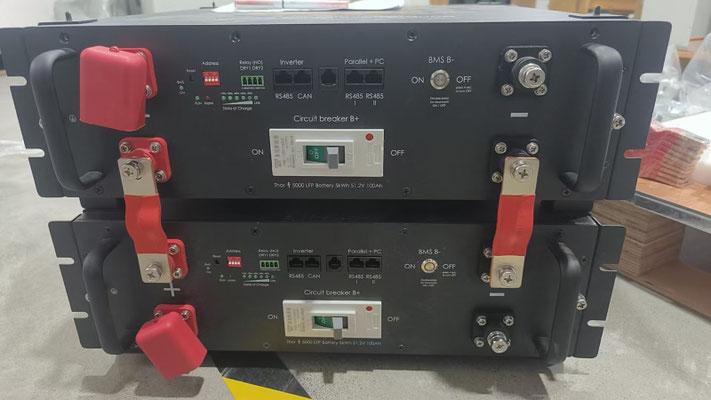

You can stack the batteries even without a expensive serverrack, using the included brackets.

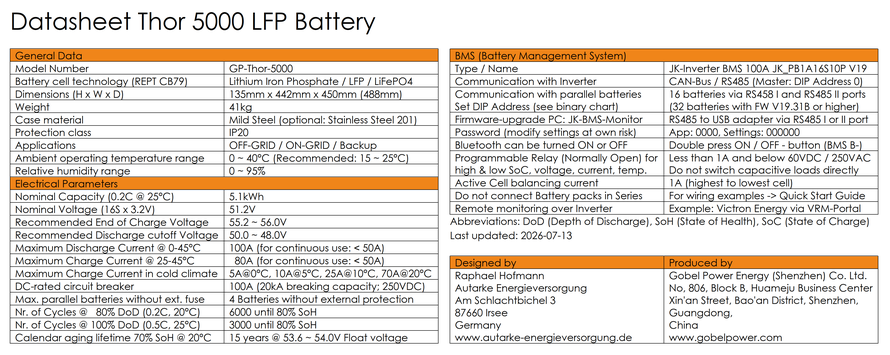

Key specifications and features of the battery packs

5.1kWh of Energy can be stored
100Ah of capacity
51.2V nominal battery voltage
6000 cycles with 80% dept of discharge (DoD) until 80% state of health (SoH) is reached
Weight: 41kg
Dimentions (H x W x D): 135mm x 442mm x 450mm (485mm)

Advantages

• Weights only 41kg -> easy installation
• Big 300A M8 front terminals with large terminal covers -> 95mm² ring-lugs fit perfectly

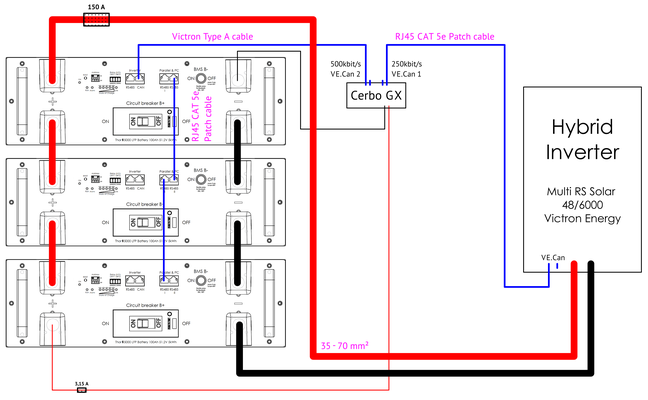

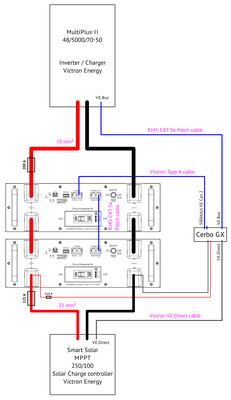

• Up to 4 Battery packs in parallel with 100mm² busbars -> only one pair of 95mm² wires
• Built in low resistance 100A DC rated circuit breaker with 20kA breaking capacity
-> Magnetic trigger mechanism trips even faster than the BMS in case of a short
• Battery pack is designed for low electrical resistance -> less heat losses

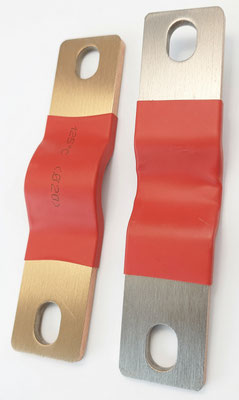

• Busbars are designed with a expansion bend/bulge to reduce stress on cell terminals
• High build quality -> no loose connections during transport and use
• Stainless Steel 201 -> corrosion resistance and stronger -> no rust, no dents during
shipping, does not loose structural integrity easily during excessive heat or fire

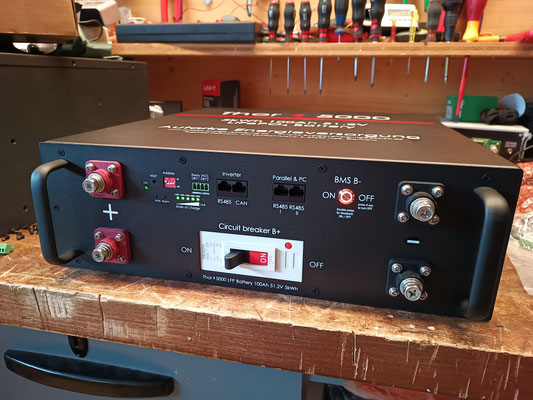

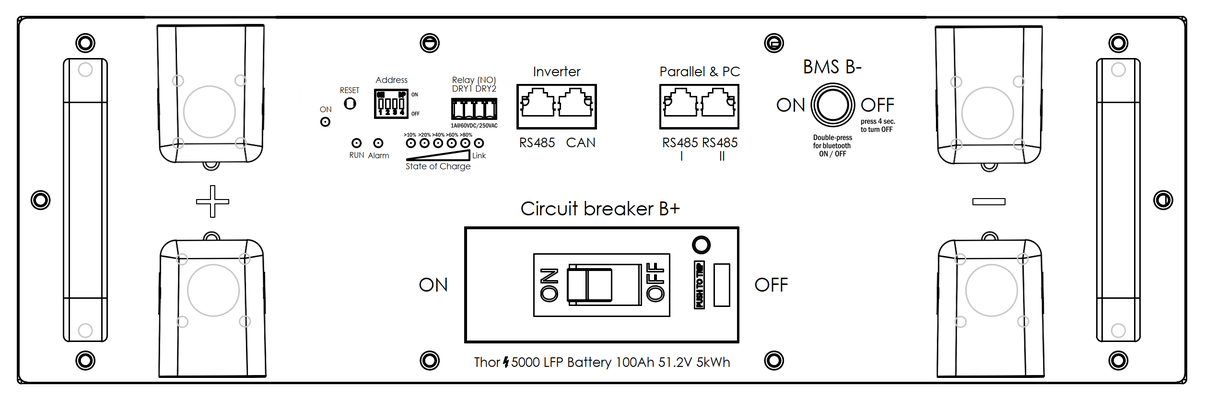

• Grounding screws are available on the left and right side of the front panel
• Compact, practical industrial design -> Battery handles, circuit breaker and
communication board are not in the way of the busbars and cables

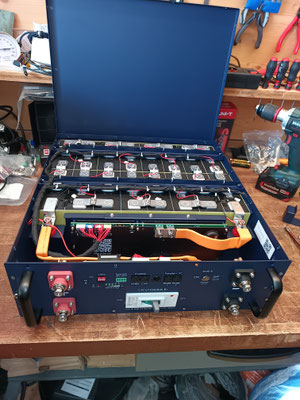

• Brand new grade A cells -> full capacity available and well matched cells
• 100A JK-Inverter BMS with 1A active balancer and carefully chosen BMS-settings

• Firmware upgrade possible with PC-Software
• Inverter communication for up to 32 parallel battery packs 163.2kWh total capacity
• Batteries also works without any RJ45 or CAN-communication

Cost Saving

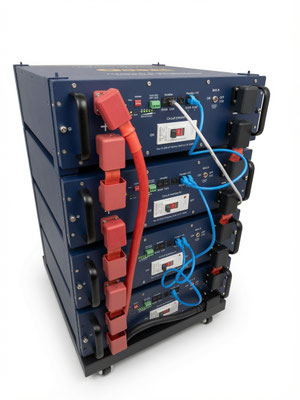

• Batteries are stackable -> no extra shelf or server-rack needed
• Batteries can be connected in parallel, even without external fuses
• Instead of running one pair of 35mm² or 50mm² wires from each battery pack to a
Lynx Distributor, you can get away with only one pair of 95mm² wire for a stack of
4 parallel battery packs (20.4kWh total), using the 100mm² flexible copper busbars.
For small systems, you won’t even need a Lynx Distributor at all.

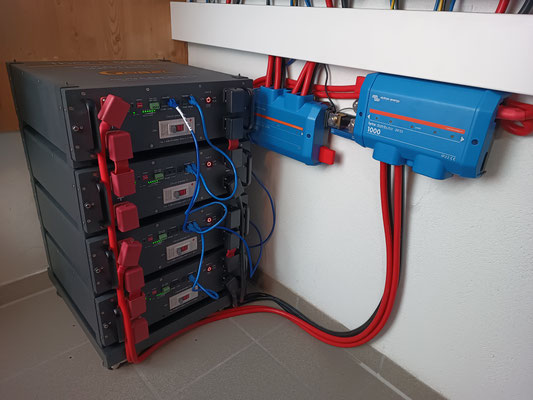

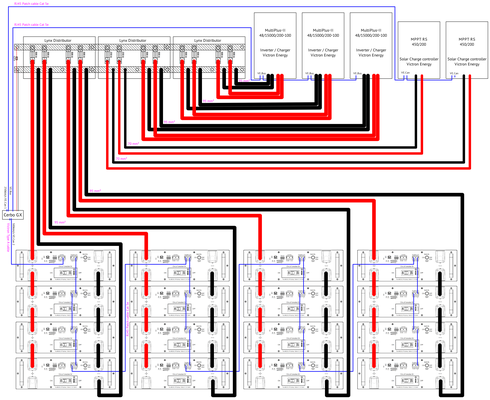

• For large systems with 16 battery packs, you would only need one Lynx Distributor.
Each stack of 4 batteries connects via one pair of 95mm² cable to the Lynx Distributor

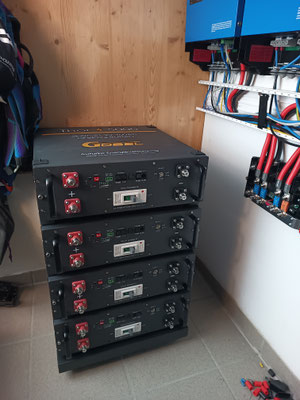

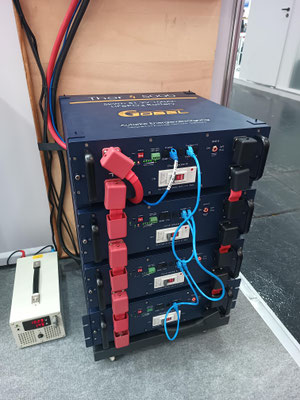

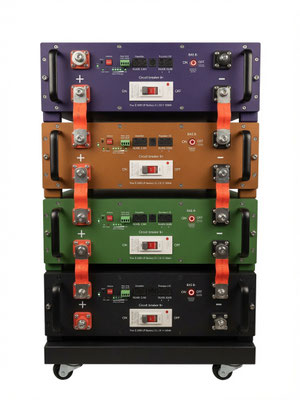

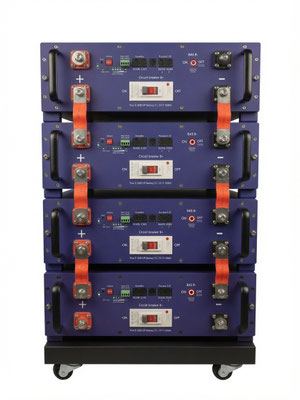

• Quick installation -> Stack up to 8 Battery packs on top of each other without a rack
• You can start with a small system and easily add further 16S LFP battery packs in future

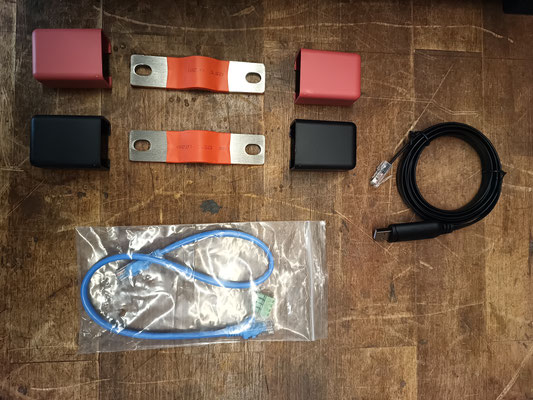

Accessories

2 x 100mm² M8 flexible copper busbars to parallel up to 4 stacked battery packs
4 x M8 Stainless steel bolts
4 x Terminal covers (2 x red + 2 x black)
2 x Server rack brackets (1 x left side, 1 x right side)

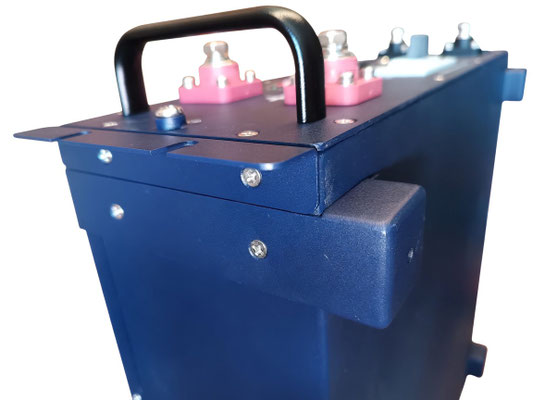

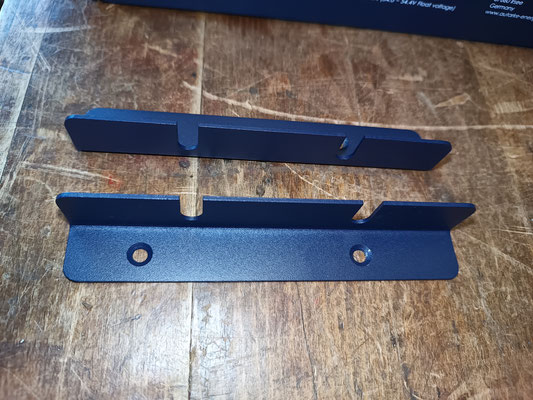

4 x Stacking brackets (2 x left side, 2 x right side)
1 x RJ45 Ethernet cable 30cm long
1 x Green pug for BMS relays output
1 x RJ45 to USB converter cable to access the BMS via a computer
